Model
|
|

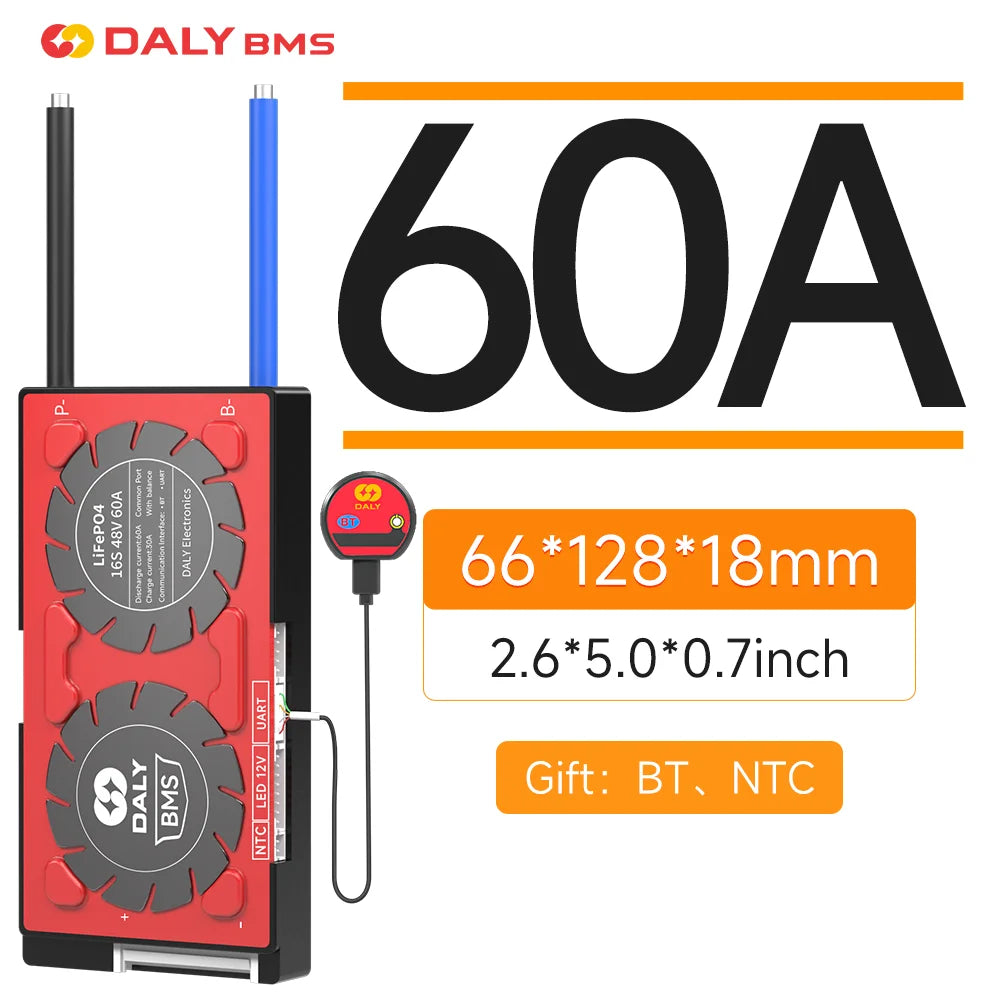

BMS With Bluetooth,Balancing,NTC
Optional voltage range：12V 24V 36V 48V 60V 72V

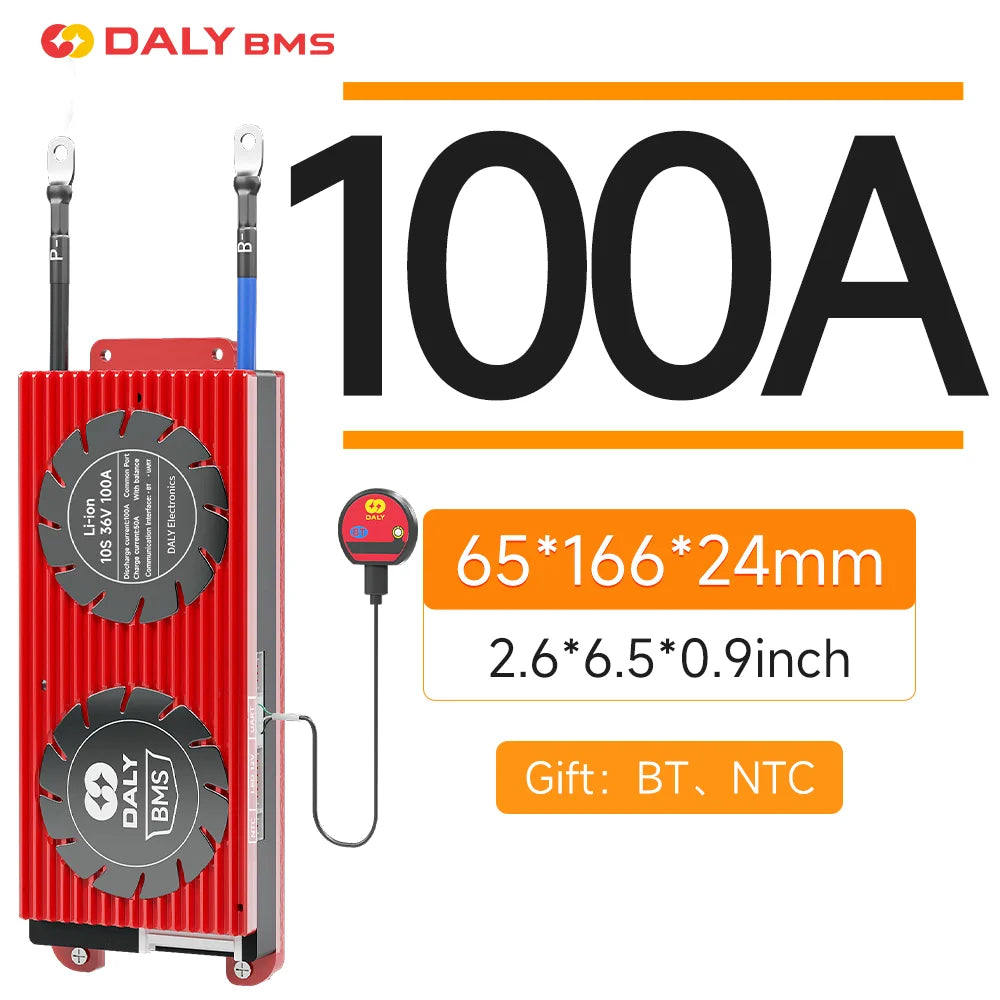

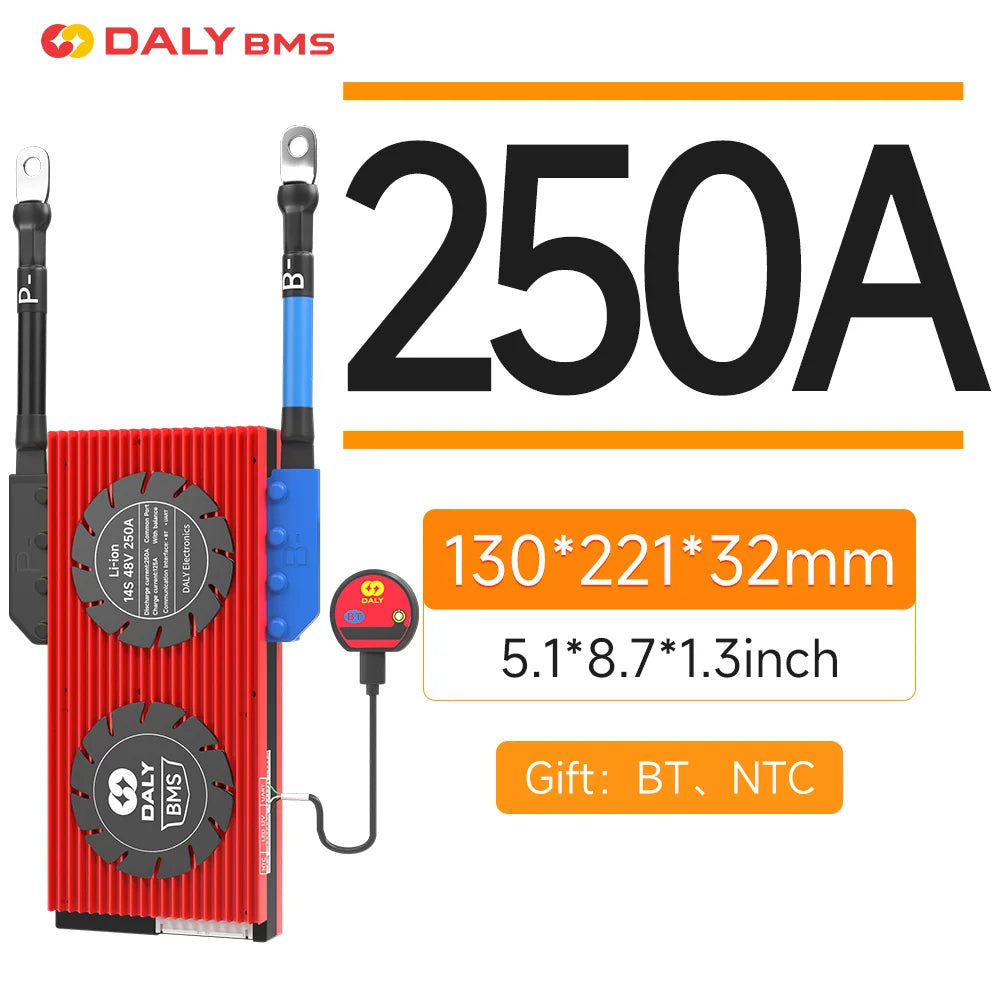

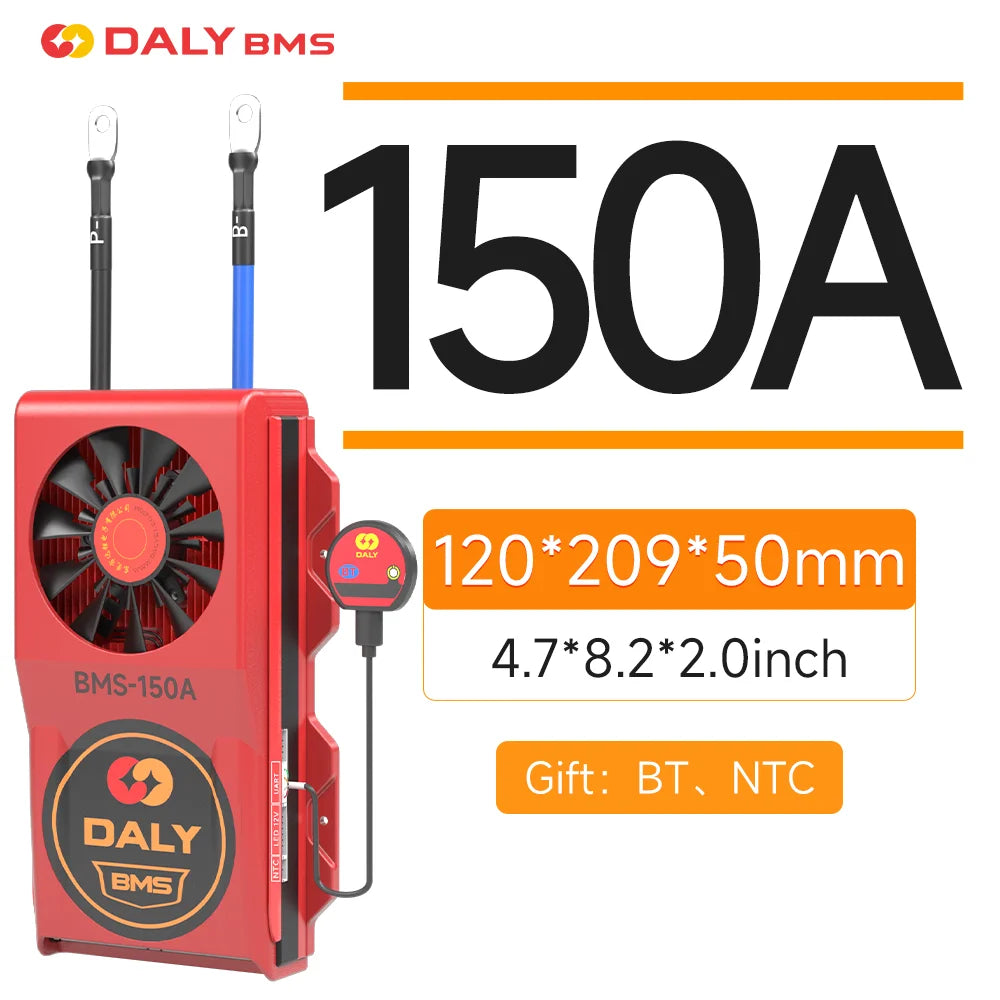

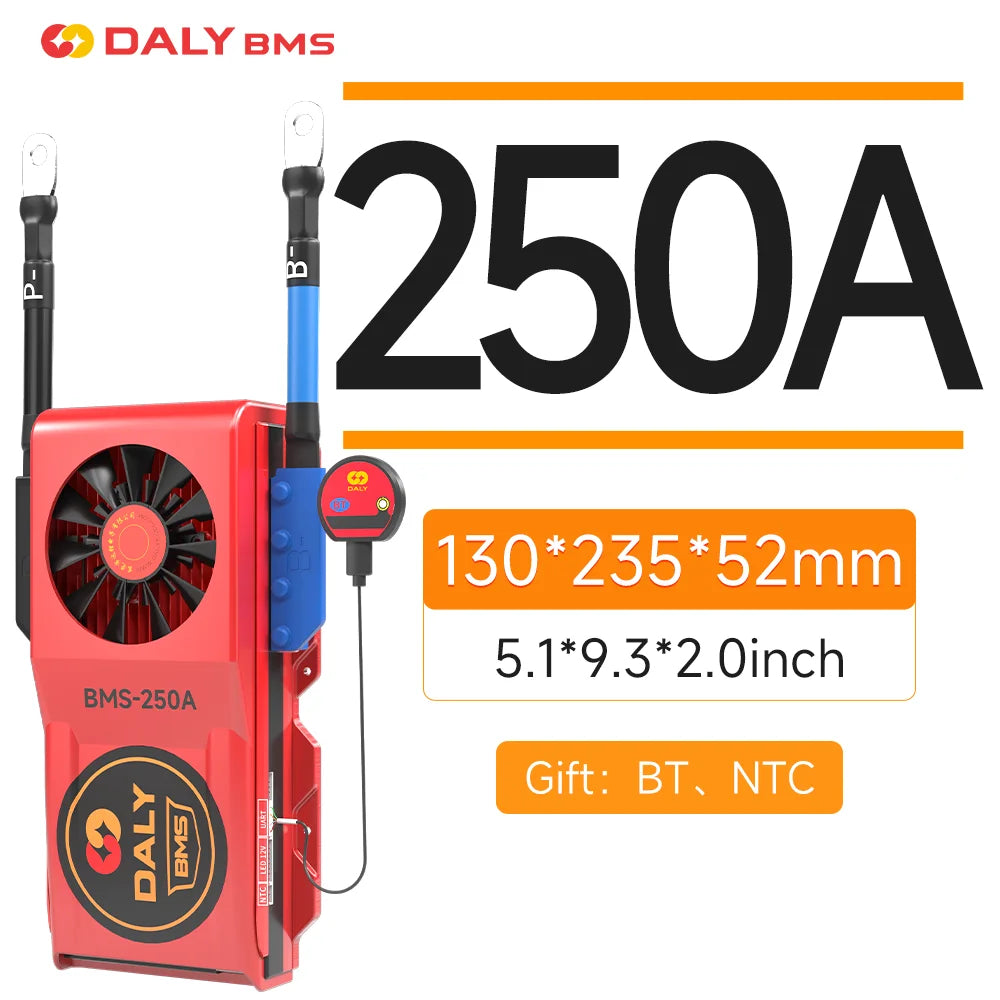

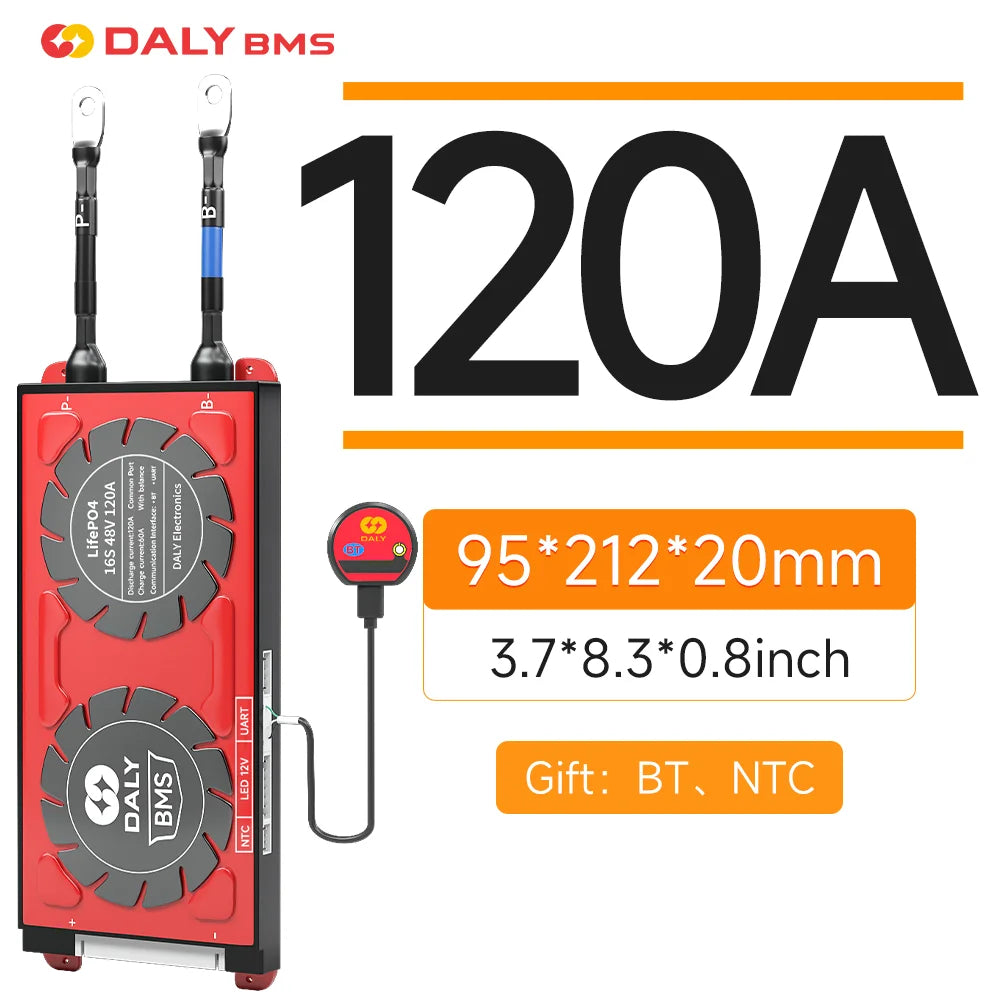

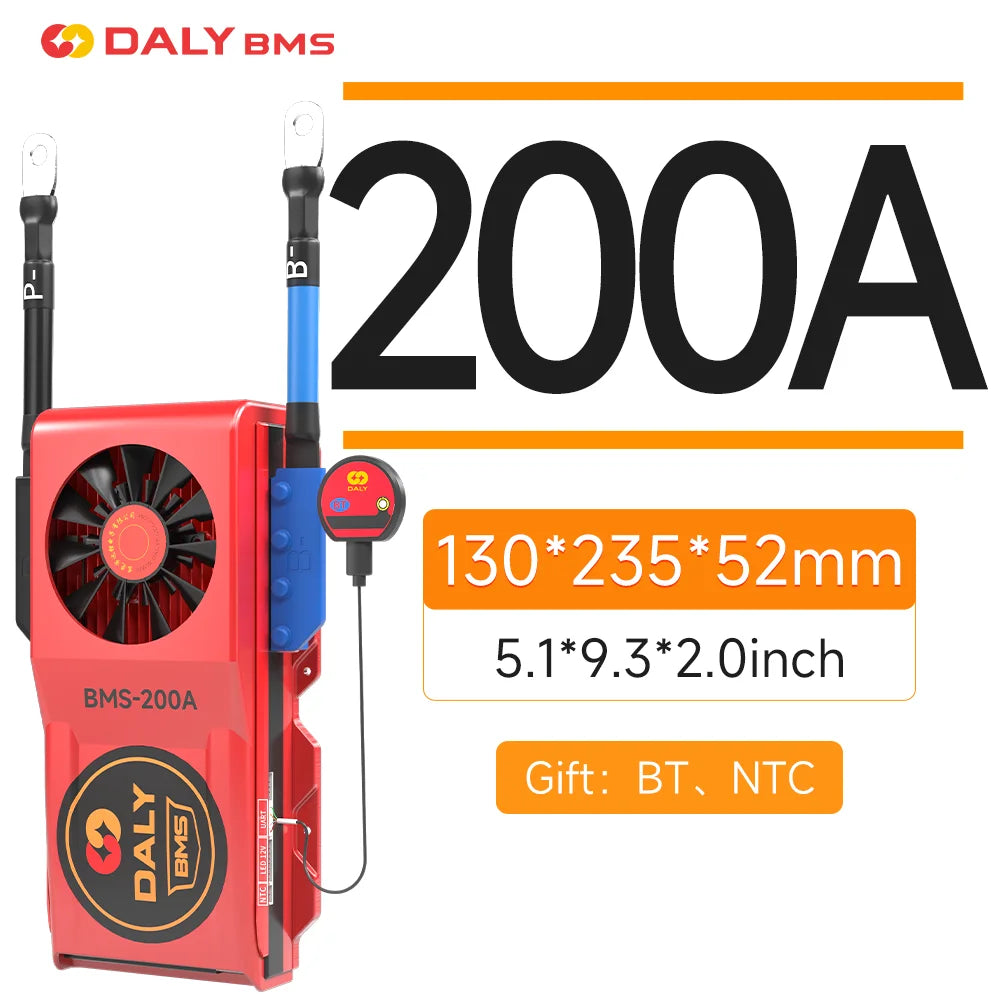

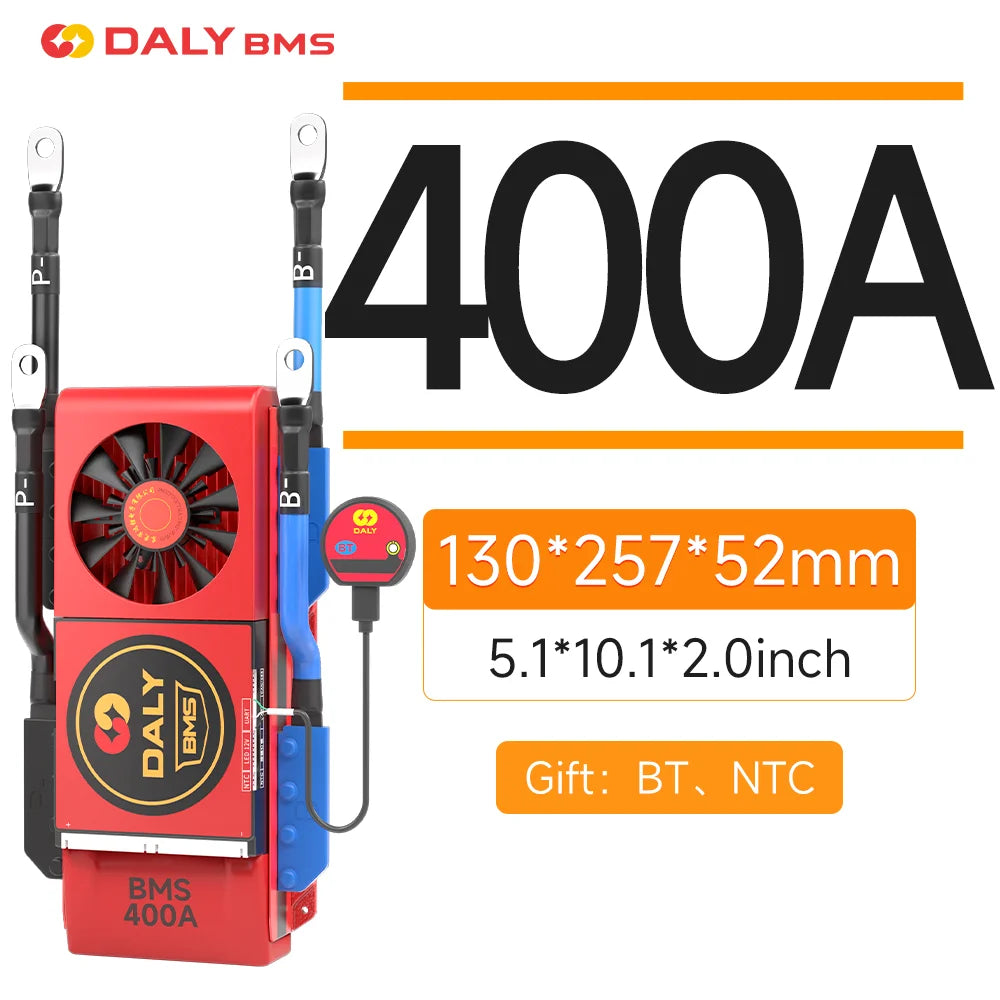

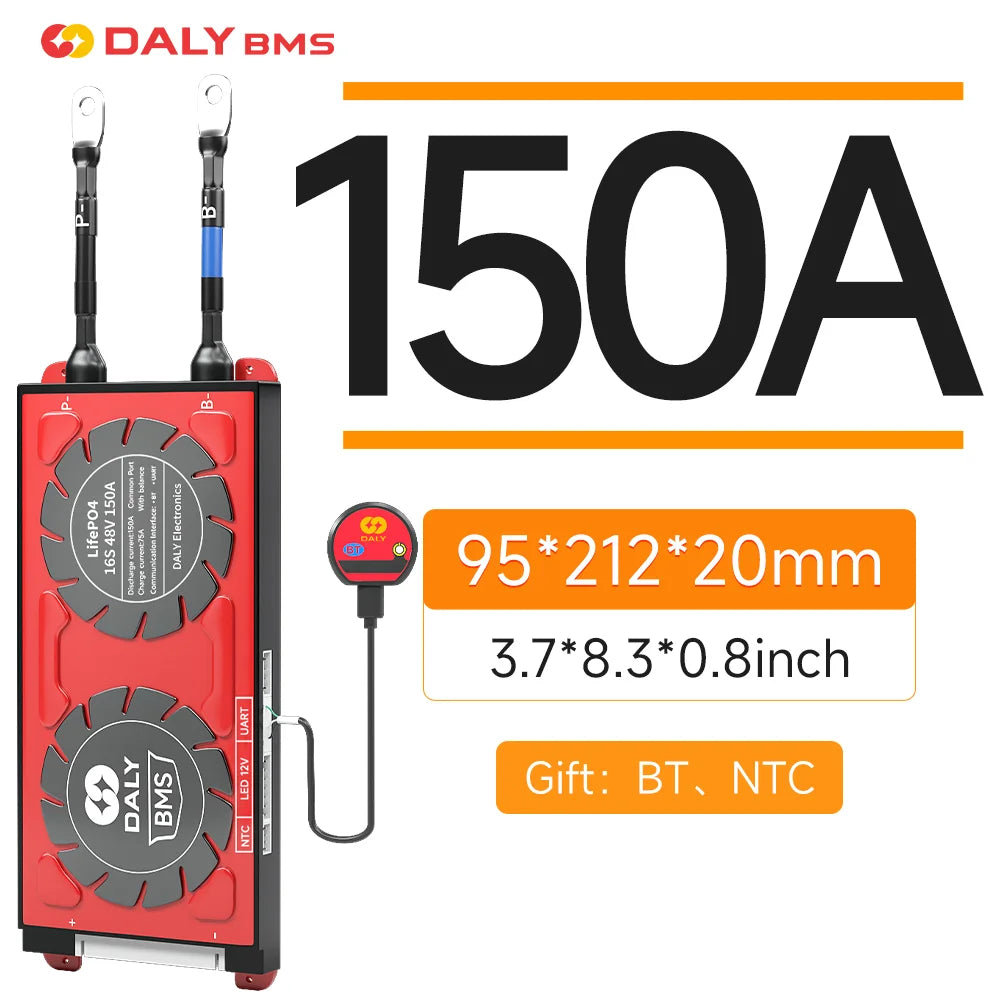

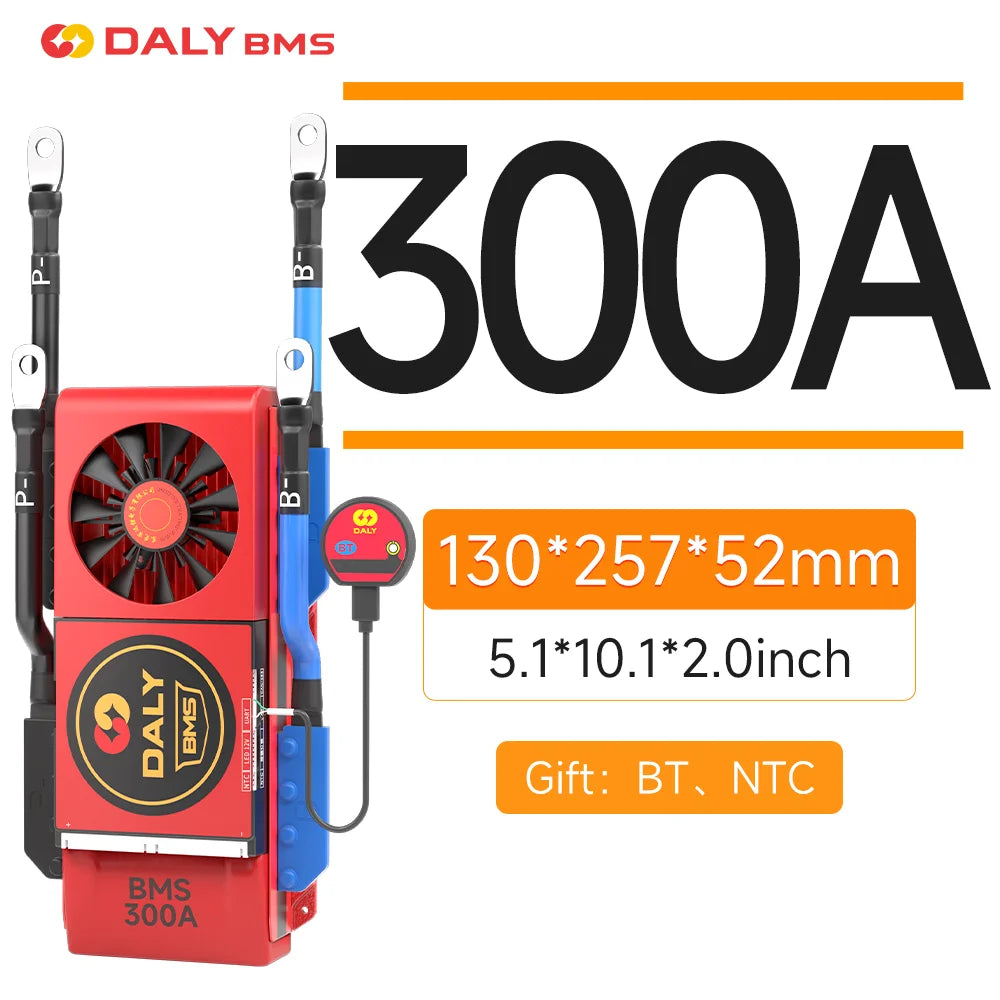

Optional current range：30A 40A 60A 80A 100A 120A 150A 200A 250A 300A 400A 500A
|
|
|
|
Usage Scenario
|
|
Used in RV energy storage, photovoltaic energy storage, home and outdoor energy storage,
electric vehicles, tricycles, forklifts, tourist vehicles, golf cart etc.
|
| |
|
How to choose the right BMS
|
|
Attention
|
Illustration
|
Mismatched BMS Consequences
|
|
Lithium
battery type
|
BMS type and lithium battery type must be in
one-to-one correspondence（Li-ion/Lifepo4)
|
1、BMS damaged,even bms and battery burn out
2、The battery cannot be fully charged and discharged
|
|
Number of battery pack
strings
|
BMS strings and battery strings must be in
one-to-one correspondence
|
BMS and battery burn out
|
|
Selection method
in experience
|
load maximum power÷(string number of battery×overdischarge voltage)×coefficient
Depending on the battery usage scenario, the coefficient value is also different
Please consult customer service for specific values
|
|
|
|
Specialty
|
|

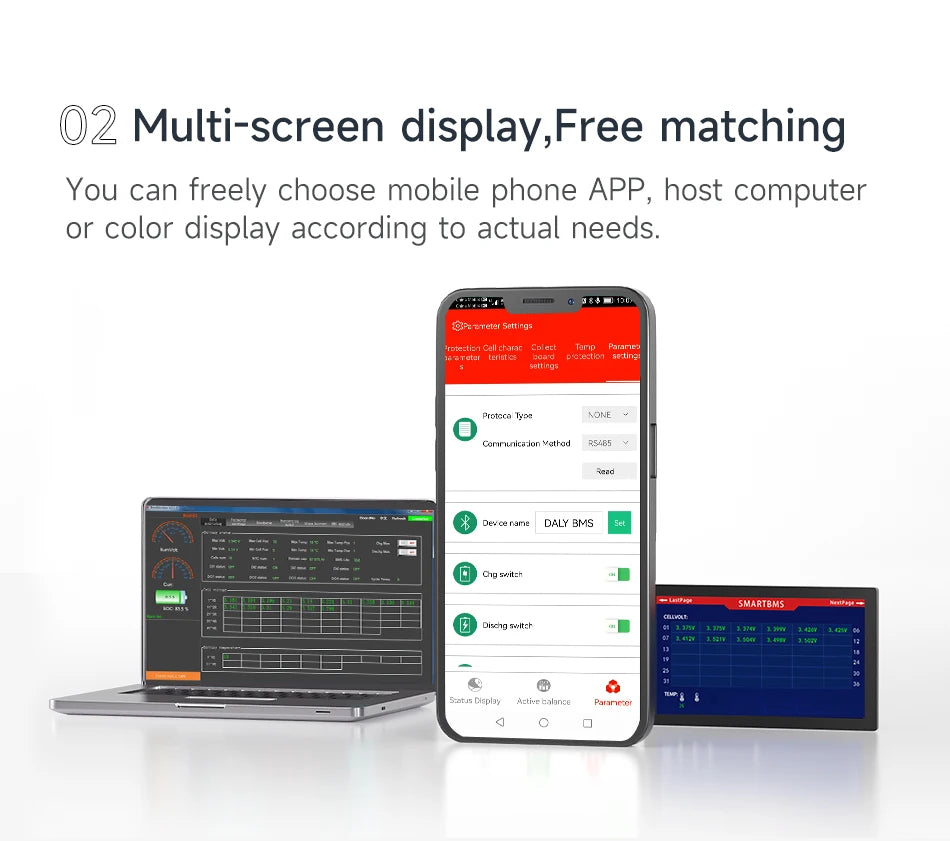

Bluetooth function:You can monitor battery data in real time by connecting to the APP
|
|
|
|
Superiority
|
|

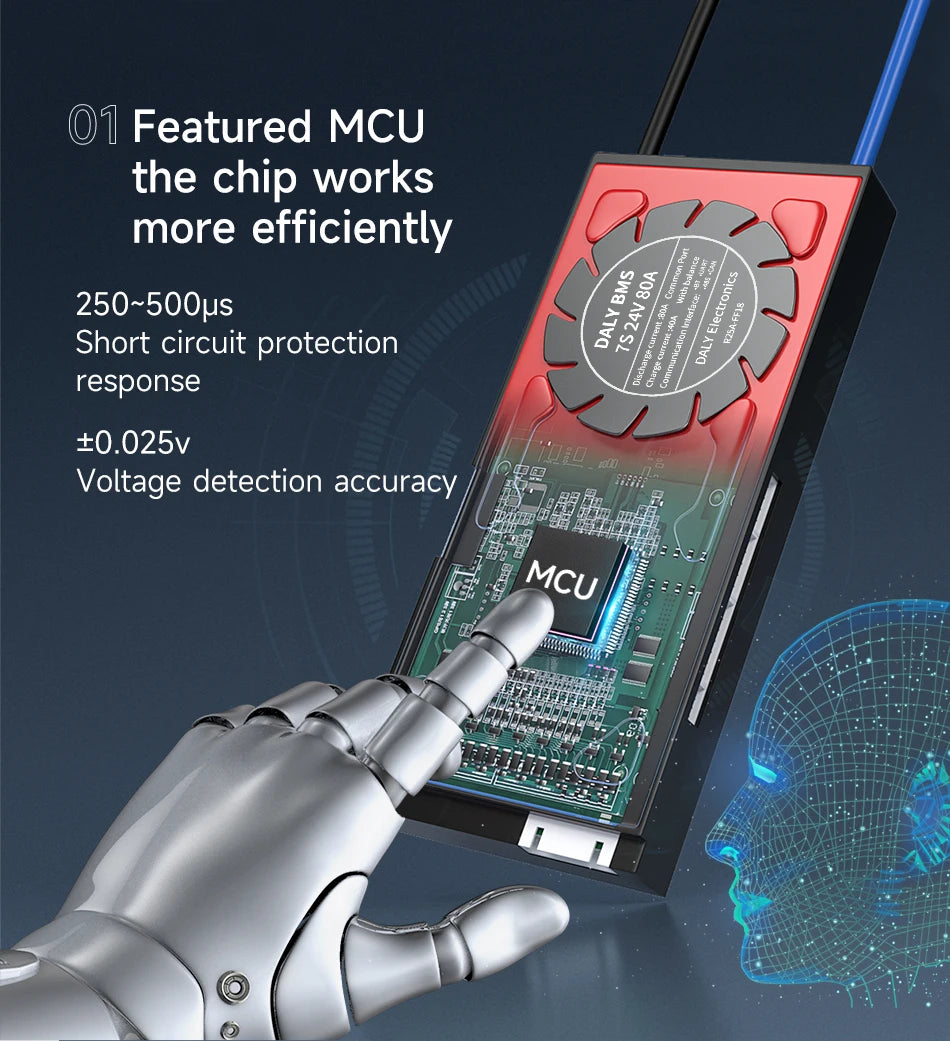

1、High-quality microelectronic components：precise and fast IC.Low resistance,high withstand voltage MOSFET.
|
|

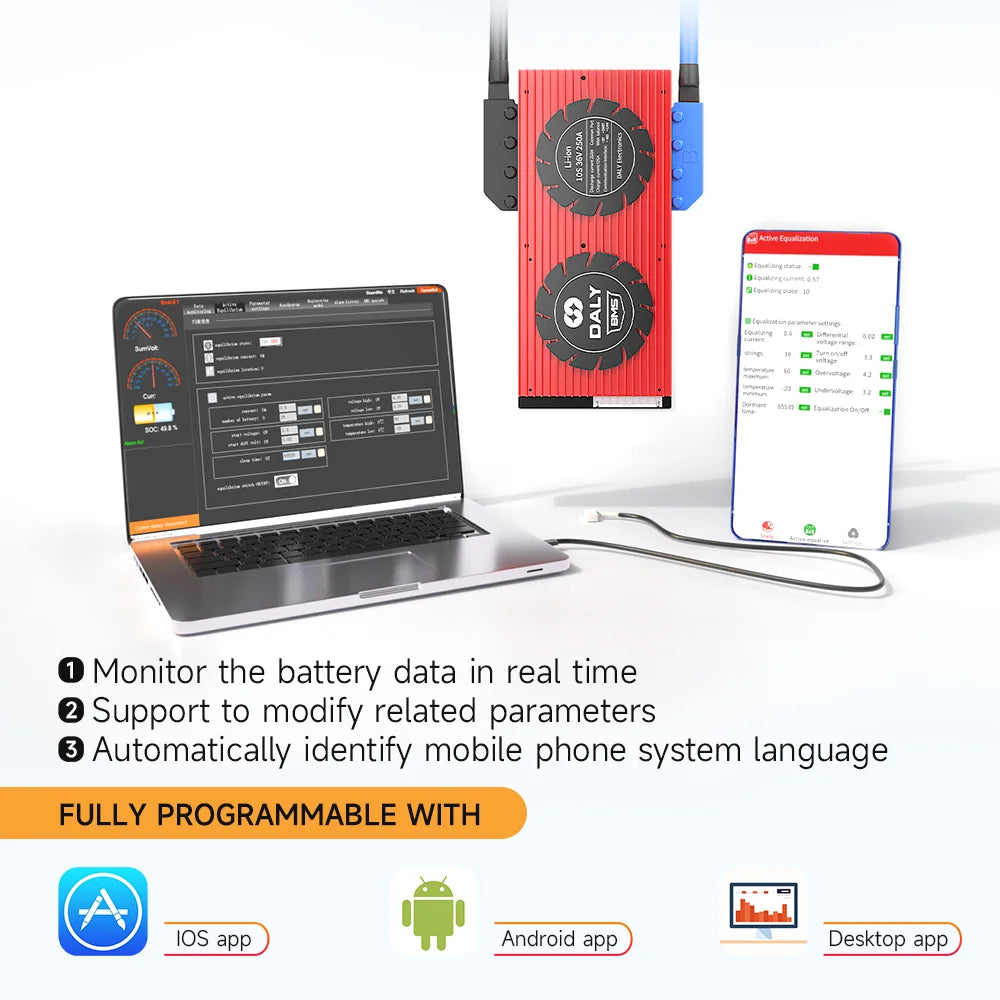

2、Through the Bluetooth APP, the battery data is constantly monitored.
|
|
3、A variety of accessories,can easily control the data and modify the parameters.
|
|
4、A variety of communication modes,data monitoring,alarm backtracking,data reading, and upgrade can be easily realized
|
|
5、Thermal silica,accelerate the heat dissipation.Ensure the smooth operation of the battery.
|
|
6、Preset interface,buckle cable,make the connection more convenient.
|
|
|
|
Basic Functions
|
|
Over-charging protection
|
Over-discharging protection
|
|
Over-current protection
|
Temperature protection
|
|
Disconnect protection
|
Short Circuit Protection
|
|
Balance Function
|
Short Circuit protection recover
|
|
|
|
Package Contains
|
|
BMS*1pcs
|
Bluetooth module*1pcs
|
Temperature probe(NTC)*1pcs
|
|
Balance cable *1pcs
|
English manual *1pcs
|
|
|
|
|
Optional accessories
|
|
UART to USB cable
|
Battery Capacity Indicator
|
Touch screen LCD
|
|
|
|
Customization
|
|
soft switch
|

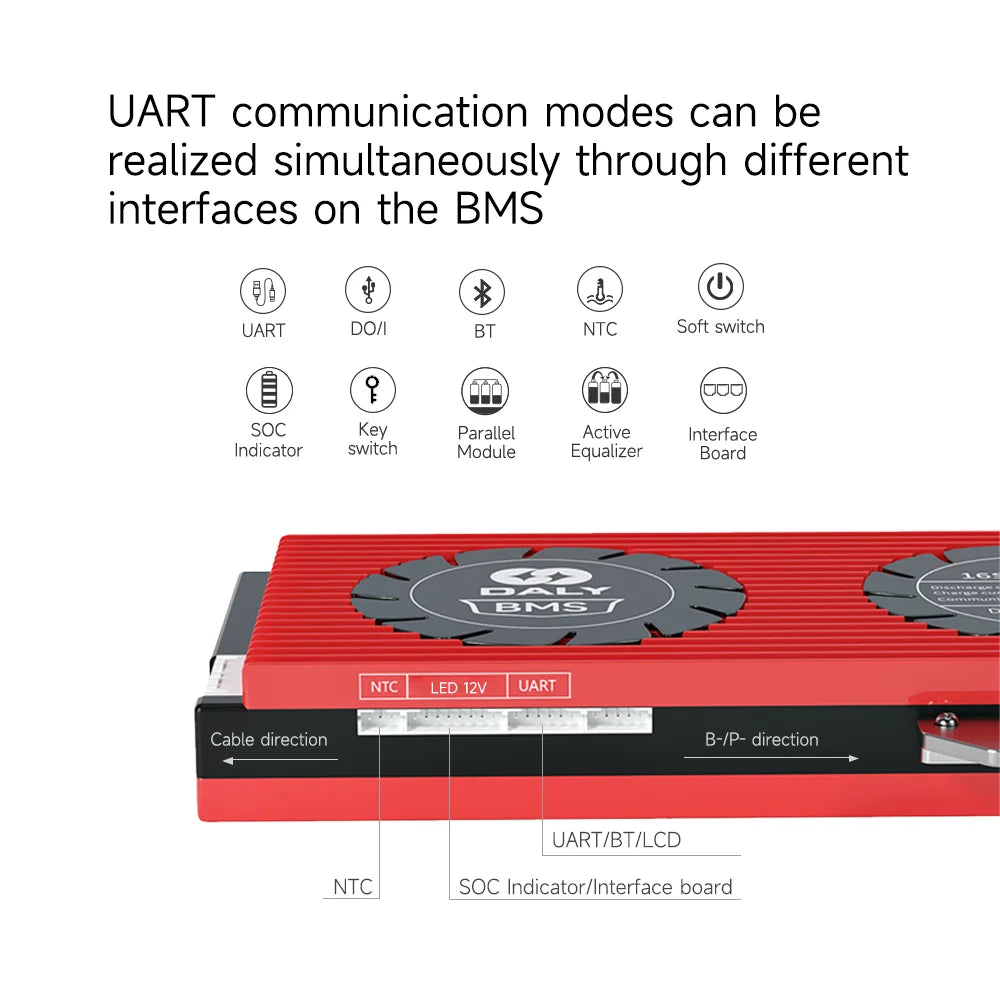

RS485 and CAN Communication
|
|
key switch
|
DO/I port for special needs
|
|
Optional accessories, customized accessories must match the BMS model and be purchased at the same time.
please contact customer service for details
|
